• Country
• Czechoslovakia

• Manufacturer / Brand
• Modry Bod, Praha-Kolin

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23032

• • Brand: Ideal-Radio (Blaupunkt CS)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ACH1 E449 E444 E443H 1805

• Main principle
• Superheterodyne (common); ZF/IF 491 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch

• Material
• Wooden case

• from Radiomuseum.org

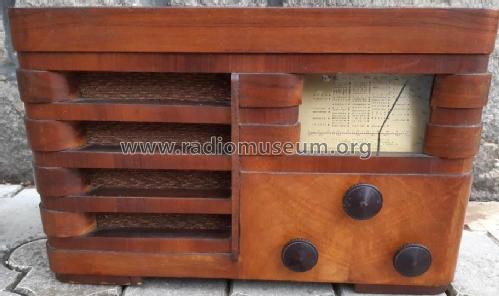

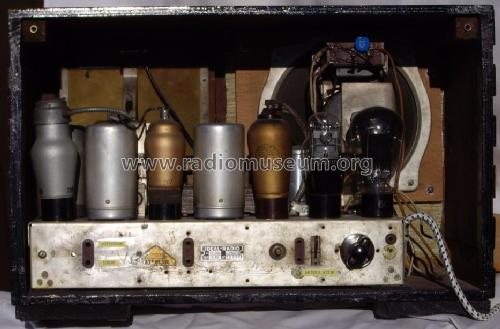

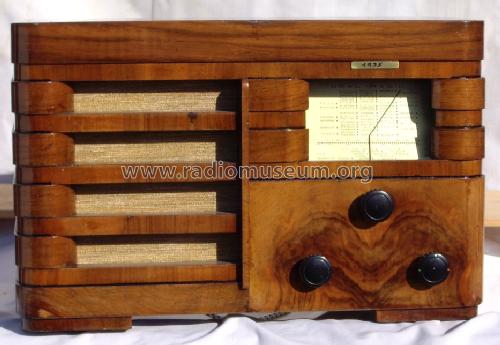

• Model: Ideal Radio Mignon Super S46 - Modry Bod, Praha-Kolin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 505 x 323 x 265 mm / 19.9 x 12.7 x 10.4 inch

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 2,120.00 CSK

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
