• Country
• Czechoslovakia

• Manufacturer / Brand
• Modry Bod, Praha-Kolin

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23041

• • Brand: Ideal-Radio (Blaupunkt CS)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• AH1 AH1 AC2 AH1 AB2 AC2 AC2 AD1 AD1 RGN2004

• Main principle
• Superhet with RF-stage; ZF/IF 491 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

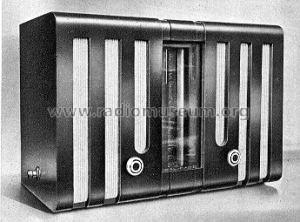

• Model: Ideal Radio Rex S986 - Modry Bod, Praha-Kolin

• Shape
• Tablemodel, with any shape - general.

• Notes
• Neon-Abstimmanzeige, variable Bandbreite; im Buch ABC2 = falsch.

• Price in first year of sale
• 4,790.00 CSK

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
