Ideal Radio Super S34
Modry Bod, Praha-Kolin
- Country
- Czechoslovakia
- Manufacturer / Brand
- Modry Bod, Praha-Kolin
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23029
-
- Brand: Ideal-Radio (Blaupunkt CS)

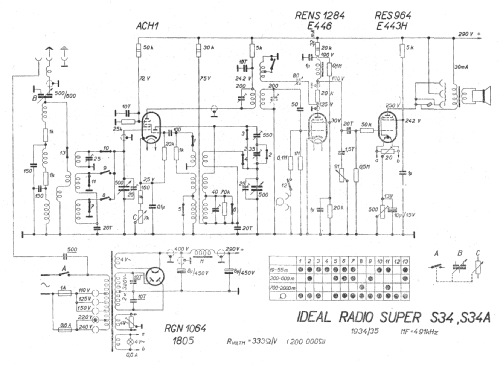

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 491 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ideal Radio Super S34 - Modry Bod, Praha-Kolin

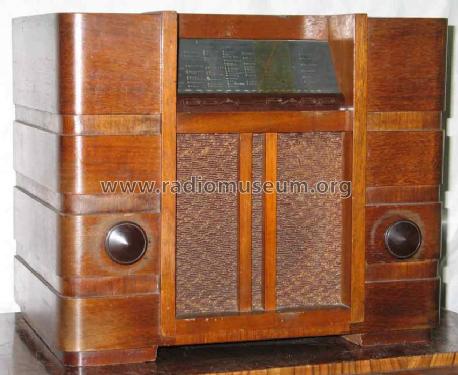

- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 422 x 345 x 280 mm / 16.6 x 13.6 x 11 inch
- Notes
- Super mit nicht bedienbarer Rückkopplung.
- Price in first year of sale
- 2,350.00 CSK
- External source of data
- Erb
- Source of data
- Ceskoslovenske prijimace 1933-1945, Baudys 1947
