• Country
• Czechoslovakia

• Manufacturer / Brand
• Modry Bod, Praha-Kolin

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23050

• • Brand: Ideal-Radio (Blaupunkt CS)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF11 EB11 AL4 EFM11 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 491 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

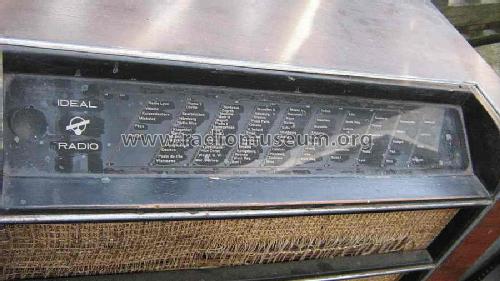

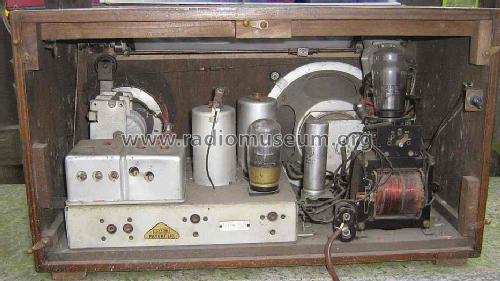

• Model: Ideal Radio Troubadour S668M - Modry Bod, Praha-Kolin

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 531 x 310 x 270 mm / 20.9 x 12.2 x 10.6 inch

• Price in first year of sale
• 2,270.00 CSK

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
