- Country
- Canada
- Manufacturer / Brand
- Mohawk Radio Limited; Toronto
- Year
- 1933 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335354
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

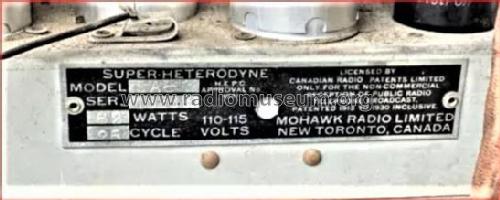

- Model: SA-6 - Mohawk Radio Limited; Toronto
- Shape
- Console with any shape - in general
- Notes
-

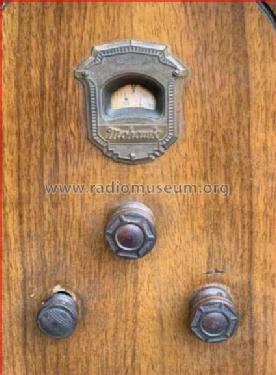

According to the Swackhammer book, (pages 67, 68 and 77 the Mohawk company set up operation in New Toronto in 1928 and made radios out of their factory there. They brought with them the Lyric line of radios which appear to be mostly tabletop radios. The cabinets were made in Woodstock, Ontario by Thomas. This example is a very nice consul model with good lines and elegant styling. It probably dates from the early 1930s.
- Author
- Model page created by Terry Maurice. See "Data change" for further contributors.
