• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1982 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264216

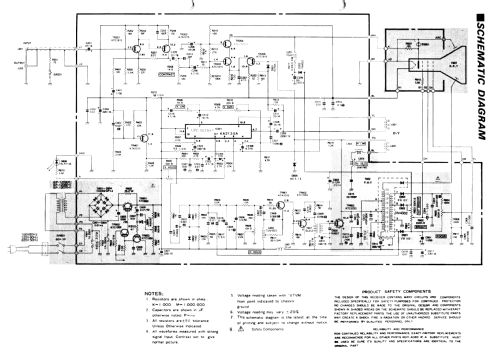

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 310AXB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: 12" Monitor CDM-1200/SW Best.-Nr. 190030 - Monacor, Bremen

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 290 x 300 mm / 12.2 x 11.4 x 11.8 inch

• Notes
• • Video-Monitor
  • Schwarz-weiß-Bildröhre
  • 12 Zoll / 30cm Bilddiagonale
  • keine eingebaute Tonausgabe/Verstärkung
  • Impedanz des Videoeingangs umschaltbar: 75Ohm/hochohmig

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
