• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1982 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 264989

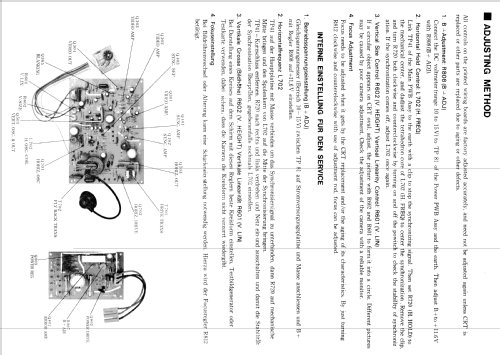

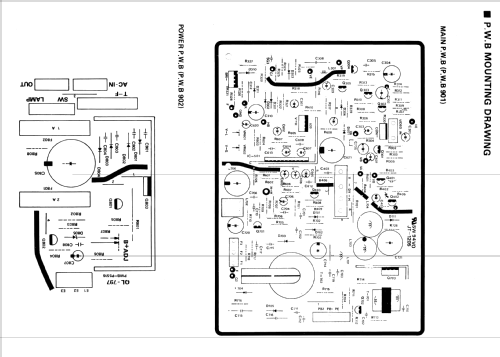

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 230AXB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

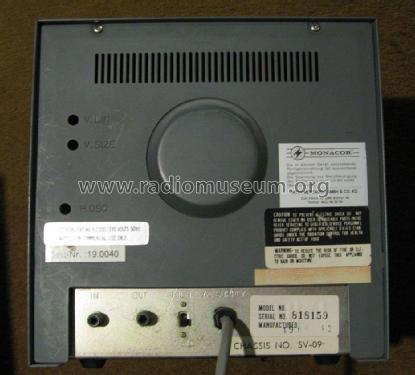

• Model: 9" Monitor CDM-900/SW - Monacor, Bremen

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 220 x 220 x 240 mm / 8.7 x 8.7 x 9.4 inch

• Notes

• 9" S/W- Überwachungsmonitor,

  Zwei parallel angeschlossene Cinch Videobuchsen zum Durchschleifbetrieb mit schaltbarem 75Ω Abschluß.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
