• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1982 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 239092

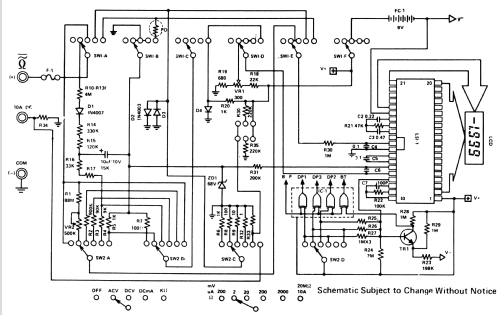

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital-LCD-Multimeter DMT-770 - Monacor, Bremen

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 93 x 4 x 165 mm / 3.7 x 0.2 x 6.5 inch

• Notes

• Digitales LCD-Multimeter DMT-770 mit Transistorprüfer.
  Anzeige: 3-1/2-stellig LCD
  Messbereiche:
  DC V: 0,2...1000 V, AC V: 0,2...750 V
  DC / AC A: 0,2...200 mA und 10 A
  Widerstand: 0...20 MOhm
  Eingangswiderstand 10 MOhm an allen DC/AC Spannungsbereichen, Polaritätswahl manuell, Nullpunkt automatisch, Transistortestbuchsen für NPN und PNP, Batterieanzeige.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Geert Schulte. See "Data change" for further contributors.
