• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1983

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 204465

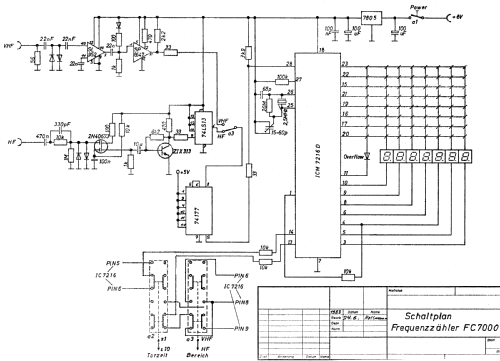

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / DC 7-10 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Frequenzzähler FC-7000 - Monacor, Bremen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 165 x 54 x 127 mm / 6.5 x 2.1 x 5 inch

• Notes
• Monacor Frequenzzähler FC-7000;
  Frequenzbereich: 10 Hz...250 MHz.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
