• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1980 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 126994

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

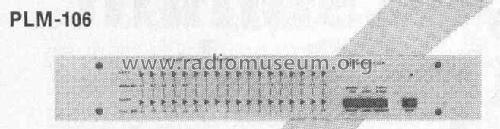

• Model: LED-Spitzen-Pegelmesser PLM106 - Monacor, Bremen

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 446 x 75 x 215 mm / 17.6 x 3 x 8.5 inch

• Notes
• Stereo-Ausführung. Trägheitslose Anzeige von NF-Leistungen an Lautsprechern 4/8 Ohm und Spannungen an hochohmigen Leistungen. Frequenzbereich 20 bis 30000 Hz; Anzeige 2× 18 LEDs.

• Mentioned in
• Funkschau (3.1980)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
