• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1988 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 209611

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220...240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

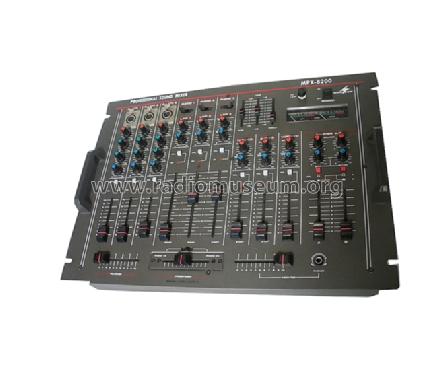

• Model: Professional Sound Mixer MPX-8200 - Monacor, Bremen

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 482 x 120 x 350 mm / 19 x 4.7 x 13.8 inch

• Notes
• Professioneller Stereo- Mixer, 3 Eingänge für Mikrofon, Phono 1, Phono2 , Phono3, tape CD, video CD, aux CD.
  Tonregler: Höhen, Mitten, Tiefen. Masterausgang, Balanceregelung, Kopfhörerausgang, mithören anderer Kanäle möglich, Ausgang für Monitor.
  Anzeigeinstrument für rechten und linken Kanal.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
