• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1990 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 181189

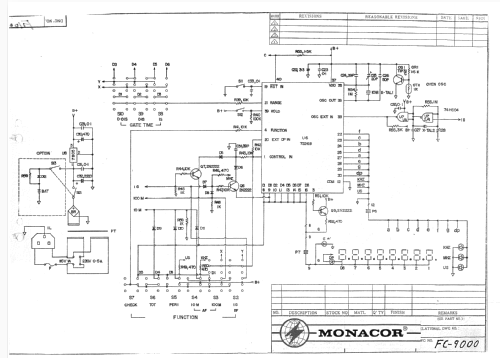

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Multifunction Counter FC-9000 - Monacor, Bremen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 205 x 90 x 250 mm / 8.1 x 3.5 x 9.8 inch

• Notes
• Der Multifunction Counter "FC-9000" von Monacor ist ein Frequenz-Zähler mit Messbereich von 10 Hz bis 1 GHz. Display mit 8 stelliger LED-Anzeige.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jürgen Küting. See "Data change" for further contributors.
