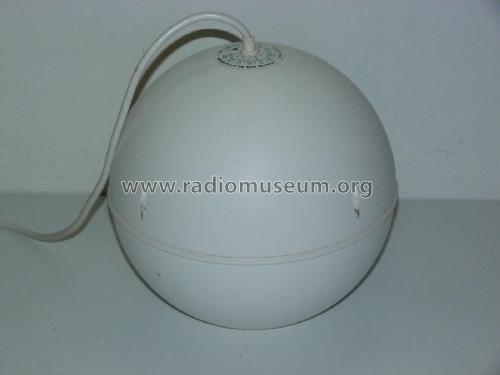

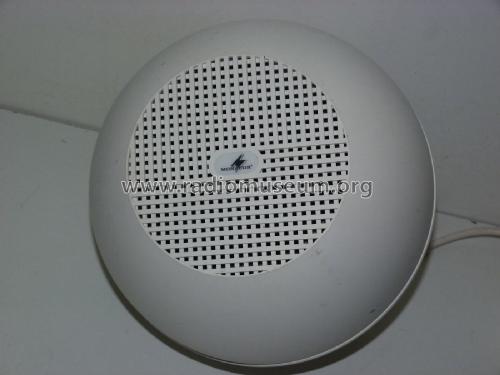

Splash-Proof PA Ball Speaker EDL-320/WS
Monacor, Bremen
- Country
- Germany
- Manufacturer / Brand
- Monacor, Bremen
- Year
- 1995 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 325705
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 25 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Splash-Proof PA Ball Speaker EDL-320/WS - Monacor, Bremen
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 265 x 215 x 265 mm / 10.4 x 8.5 x 10.4 inch
- Notes
-
Splash-Proof PA Ball Speaker. Kugellautsprecher für Deckenbefestigung, spritzwassergeschützt. Anwendung in 100-Volt-Anlagen in großen Räumen mit langen Leitungen. Frequenzbereich 100 bis 20.000 Hz. Anschlussmöglichkeiten:
rot = Null
weiss = 20 W an 500 Ω
blau = 15 W an 670 Ω
gelb = 10 W an 1 kΩ
grün = 5 W an 2 kΩ
braun = 2,5 W an 4 kΩ
schwarz = 20 W an 8 Ω
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
