• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1979 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 189274

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

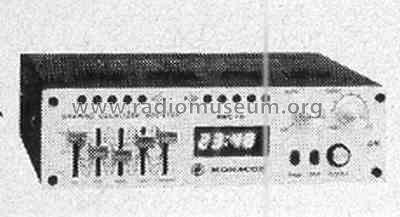

• Model: Equalizer-Booster-Clock EBC-6 - Monacor, Bremen

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 190 x 55 x 130 mm / 7.5 x 2.2 x 5.1 inch

• Notes
• Stereo-Equalizer-Booster, 24 Stunden-Digital-Quarzuhr, elektronische Verhallung, LED-Leistungsanzeige, Ausgangsleistung 2 x 25 Watt max., 4 bis 8 Ohm, Frequenzbereich 20 bis 30000 Hz.

• Mentioned in
• -- Original prospect or advert (ELO 1979)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
