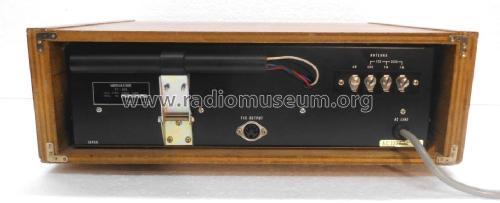

Stereo Tuner ST-60X
Monacor, Bremen
- Country
- Germany
- Manufacturer / Brand
- Monacor, Bremen
- Year
- 1972 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 329613
mit passendem Verstärker SA-600
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 117; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Tuner ST-60X - Monacor, Bremen
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 380 x 130 x 275 mm / 15 x 5.1 x 10.8 inch
- Notes
-
Monacor ST-60X
Stereo-Tuner, Mittelwelle und UKW, FM-Muting, FM AFC, Abstimminstrument, Steroeleuchte, rot
Gehäuseausführung: nußbaum
Passender Verstärker: Monacor SA-600
Gerät wurde auch angeboten als: Monarch ST-60X und PrinzSound T- 2200
- Net weight (2.2 lb = 1 kg)
- 4.8 kg / 10 lb 9.2 oz (10.573 lb)
- Author
- Model page created by Michael Lienhop. See "Data change" for further contributors.
