• Country
• Germany

• Manufacturer / Brand
• Monette, Mock & Nettebeck; Berlin

• Year
• 1925/1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15966

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: F - Monette, Mock & Nettebeck;

• Shape
• Tablemodel, slant panel.

• Price in first year of sale
• 168.00 RM +

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Info Dr. H. Börner without schematic

• Picture reference

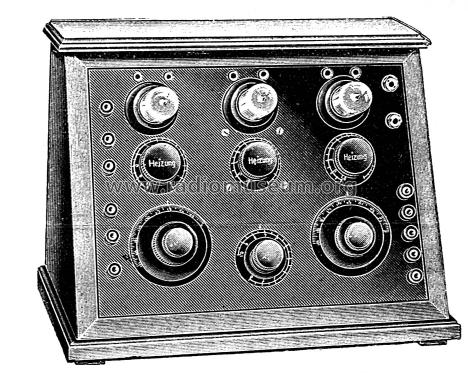

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 28 models, 26 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
