• Country
• United States of America (USA)

• Manufacturer / Brand
• Monitor Equipment Corp.; New York, NY

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47488

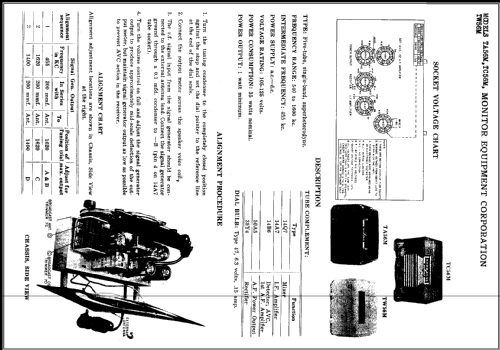

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 14Q7 14A7 14B6 35Y4 50A5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TC-56M - Monitor Equipment Corp.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7 x 6 inch / 305 x 178 x 152 mm

• Notes
• Built in loop antenna.

• External source of data
• Ernst Erb

• Source of data
• Antique Radios, Johnson 1986

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Other Models

• Here you find 9 models, 8 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
