• Country
• United States of America (USA)

• Manufacturer / Brand
• Monitoradio; Indianapolis (IN)

• Year
• 1956

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 132849

• • alternative name: Radio Apparatus Corp.; Indianap.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BK7A 6U8 6BK7A 6BJ6 6U8 6BJ6 6BJ6 6AL5 6BN6 12AX7 6AQ5 5Y3GT

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: Monitoradio MCA-100-H - Monitoradio; Indianapolis IN

• Shape
• Tablemodel, with any shape - general.

• Notes

•
  Monitoradio Model MCA-100-H is an AC Operated FM Double Conversion Superheterodyne Receiver.
  Radio Apparatus Corp. Monitoradio MCA-100-H;
  Covers 147 - 174 MHz, squelch control.

• Literature/Schematics (1)

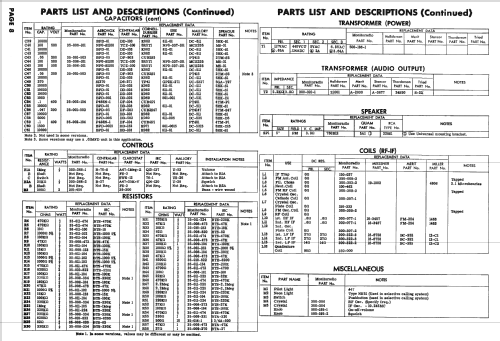

• Photofact Folder, Howard W. SAMS (Set 313 Folder 7 dated 4-56)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
