• Country
• United States of America (USA)

• Manufacturer / Brand
• Monitoradio; Indianapolis (IN)

• Year
• 1956 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 266401

• • alternative name: Radio Apparatus Corp.; Indianap.

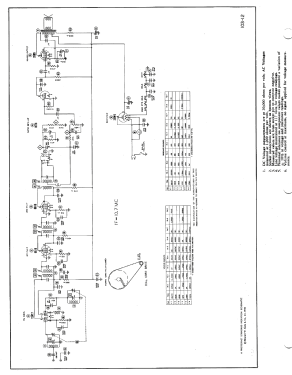

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• AC/DC-set / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Police Alarm PR-8 - Monitoradio; Indianapolis IN

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 7 x 6.5 inch / 279 x 178 x 165 mm

• Notes

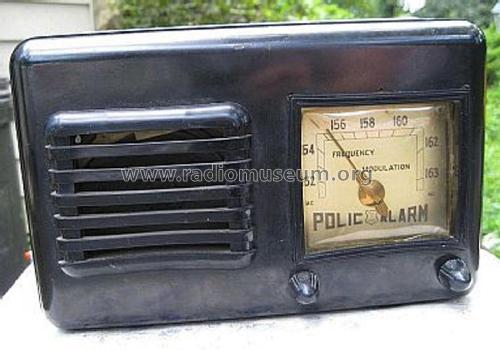

• Monitoradio PR-8.  FM police band (152-163 mHz). Black bakelite. Made in Indiana.

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.

• Other Models

• Here you find 27 models, 22 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Monitoradio; Indianapolis (IN)
