04BR-511A Order= P462 B 511
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47499
-
- Brand: Airline or Air-Line
1940 Wards Airline 04BR511

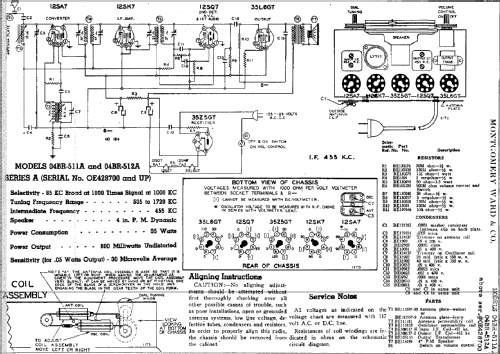

Click on the schematic thumbnail to request the schematic as a free document.

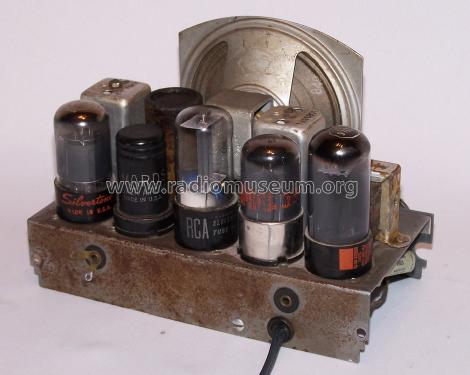

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 04BR-511A Order= P462 B 511 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 195 x 125 x 130 mm / 7.7 x 4.9 x 5.1 inch
- Notes
-

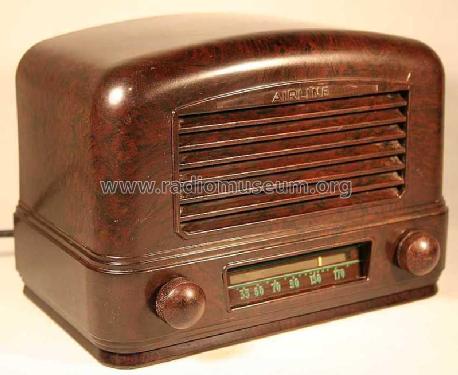

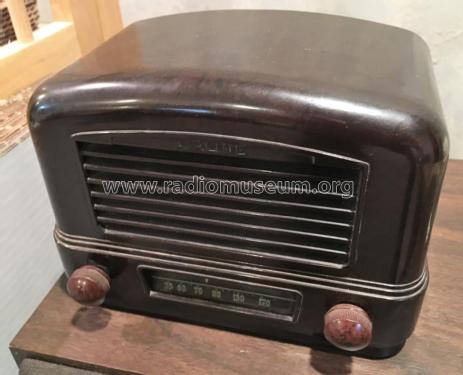

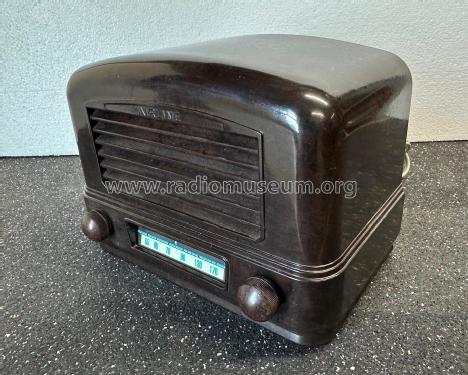

Brown plastic cabinet. Same Model with ivory cabinet: Model 04BR-512A.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Price in first year of sale
- 6.45 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference

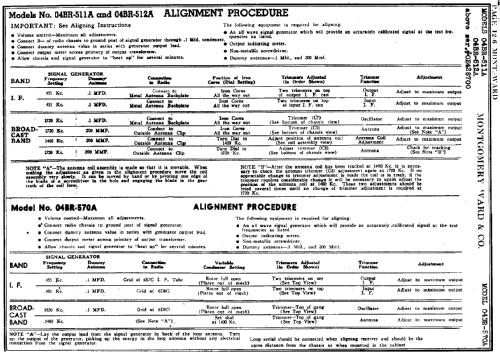

- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 703. Spring/Summer 1941, page 698.)
