Airline 04BR-513A Order= P462 B 513
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47501
-
- Brand: Airline or Air-Line
From Bottom of cabinet

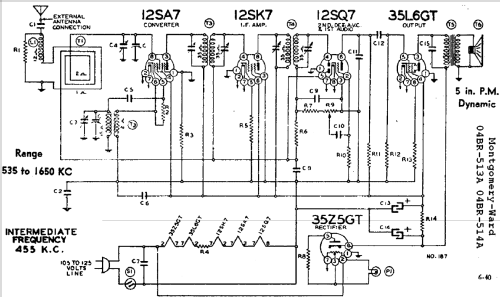

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Airline 04BR-513A Order= P462 B 513 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.75 x 6.875 x 5.437 inch / 273 x 175 x 138 mm
- Notes
-

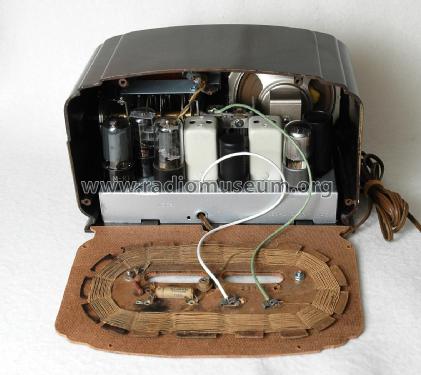

BC (535-1650 kHz) band. Built-in loop antenna as first RF circuit.
Colours and material:
model 513: brown bakelite
model 514: ivory finish
- Price in first year of sale
- 9.65 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (1)
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (page 36.)
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 703. Spring/Summer 1941, page 698.)
