04BR-615A Order= 462 B 615
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47508
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 2.1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 04BR-615A Order= 462 B 615 - Montgomery Ward & Co. Wards,
- Dimensions (WHD)
- 20 x 13.5 x 11.5 inch / 508 x 343 x 292 mm
- Notes
-
BC (535-1600 kHz) and SW (5.46-18.3 MHz) bands. Loop antenna as first RF circuit for BC band.
See also the similar Model 04WG-614 without recorder.
- Price in first year of sale
- 42.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Literature/Schematics (3)

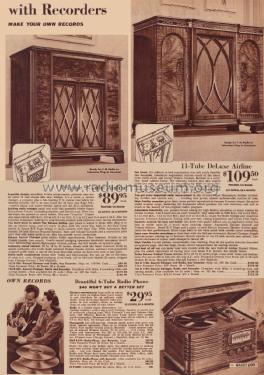

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1940/41, No. 133, page 699. Spring/Summer 1941, page 703.)
- Literature/Schematics (4)
- Table Top Radios Vol. 4 Stein 2003 (page 45.)
