Airline 05WG-2749D Order= 62 C 2749 R
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1950–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99178
-
- Brand: Airline or Air-Line

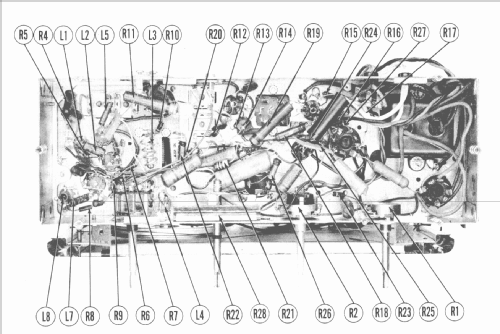

Sams Photofact Bild
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 05WG-2749D Order= 62 C 2749 R - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 34 x 34 x 16 inch / 864 x 864 x 406 mm
- Notes
-
Airline model 05WG-2749D is an AC operated combination phono-radio, AM-FM superheterodyne receiver.
- Price in first year of sale
- 199.95 $
- Circuit diagram reference
- Rider's Perpetual, Volume 22, covering 1951
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 129, Folder 3, dated 4-51)
- Literature/Schematics (2)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1951/52, page 699.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
