• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47608

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7GT 1N5GT 1N5GT 1H5GT 3Q5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.17 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 14BR-574A Order= P362 A 2574 - Montgomery Ward & Co. Wards,

• Shape

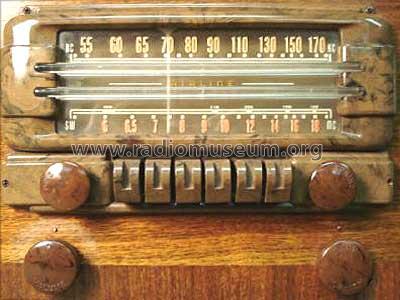

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 19.375 x 10.25 x 10 inch / 492 x 260 x 254 mm

• Notes

• BC (535-1720 kHz) and SW (5.8 - 18.3 MHz) bands.

• Price in first year of sale
• 28.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (4)

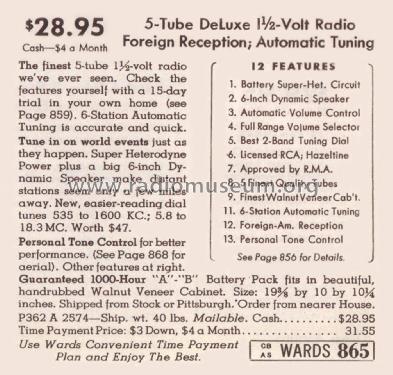

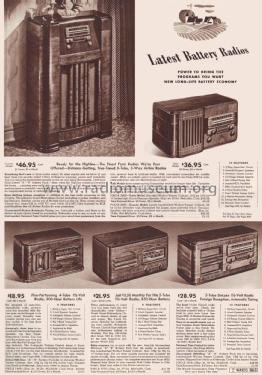

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1941/42, No. 135, page 865. Spring/Summer 1942, No. 136, page 704.)
