• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47614

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7GT 1N5GT 1N5GT 1H5GT 3Q5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Ø 6 inch = 15.2 cm

• Power out
• 0.165 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 14BR-685A Order= P362 A 2685 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 21.5 x 11.25 x 11.5 inch / 546 x 286 x 292 mm

• Notes

• 6 pushbutton station selectors.

• Price in first year of sale
• 36.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (4)

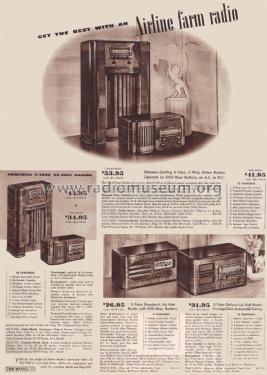

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1941/42, No. 135, page 865. Spring/Summer 1942, No. 136, page 704.)
