• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47624

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12SJ7 12SK7 6T7G 12SQ7 35L6GT 12J5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 14BR-736A Order= P462 A 736 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17 x 10 x 8 inch / 432 x 254 x 203 mm

• Notes
• BC (540-1600 kHz) and SW (9.0-12.0 MHz) bands.

• Price in first year of sale
• 22.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 36.)

• Literature/Schematics (3)

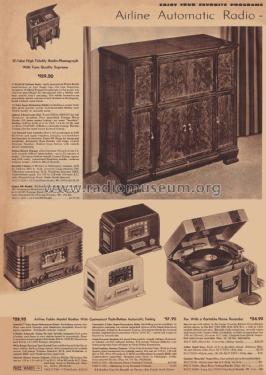

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1942/43, No. 137, page 932.)

• Literature/Schematics (4)

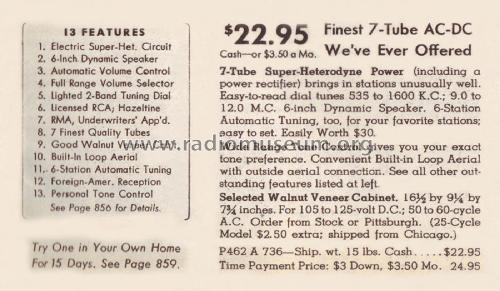

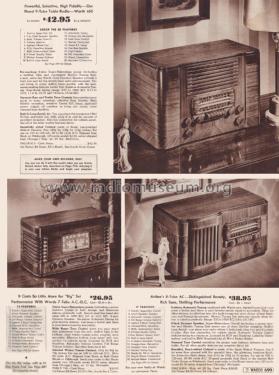

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1941/42, No. 135, page 857. Spring/Summer 1942, No. 136, page 699.)
