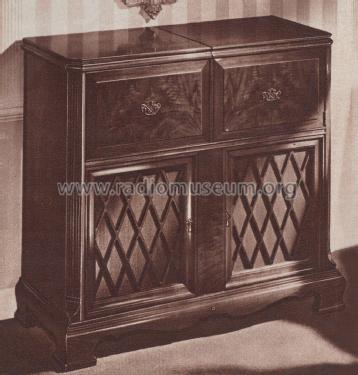

14BR-912A Order= 162 A 912
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47628
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 14BR-912A Order= 162 A 912 - Montgomery Ward & Co. Wards,
- Dimensions (WHD)
- 38 x 36 x 17 inch / 965 x 914 x 432 mm
- Notes
- BC (540-1600 kHz) and 49, 31, 25 and 19m SW bands. Permeability tuning. Tuning eye. Push-pull audio amplifier.
- Price in first year of sale
- 109.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Riders 13-35, 13-36
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1941/42, No. 135, page 862. Spring/Summer 1942, No. 136, page 700.)
