• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941–1943

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 47639

• • Brand: Airline or Air-Line

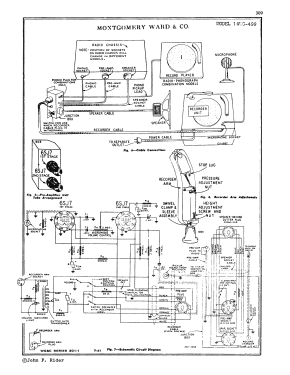

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6SJ7 6SJ7

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Powered by external power supply or a main unit. / 105-125 Volt

• from Radiomuseum.org
• Model: 14WG-499 Order= 462 A 499 - Montgomery Ward & Co. Wards,

• Notes
• Record player and recorder. Needs connection with radio.

• Price in first year of sale
• 34.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in

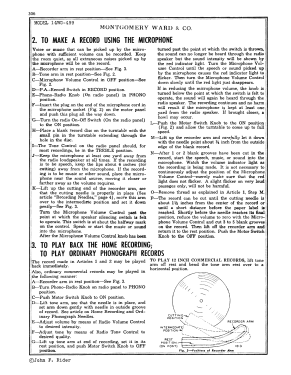

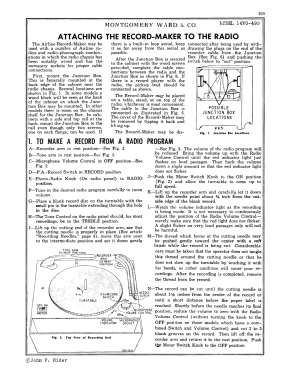

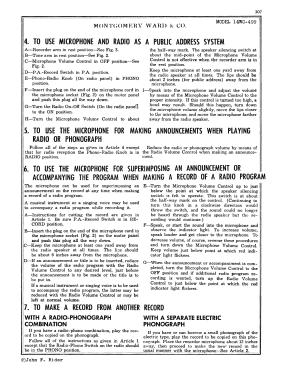

• Rider's 14-31

• Literature/Schematics (3)

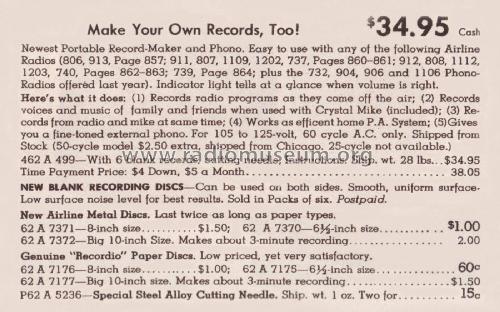

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1942/43, No. 137, page 932.)

• Literature/Schematics (4)
• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1941/42, No. 135, page 862. Spring/Summer 1942, No. 136, page 700.)
