• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47649

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7GT 1N5GT 1N5GT 1H5GT 1A5GT

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1,5 + 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 0.07 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

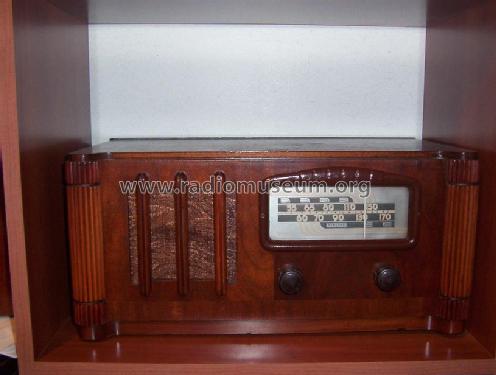

• Model: 14WG-572 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 220 x 240 mm / 18.5 x 8.7 x 9.4 inch

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Riders 13-49, 13-50
