• Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 47668
    • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

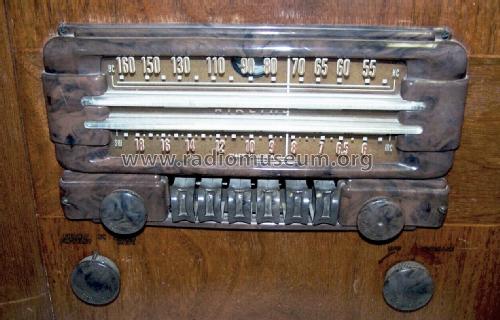

  • Model: 14WG-806 Order= P462 A 806 - Montgomery Ward & Co. Wards,

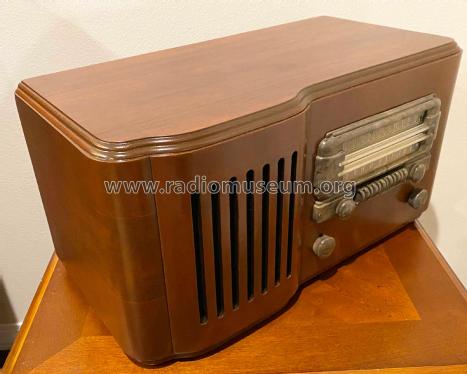

  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 21.5 x 11 x 10.5 inch / 546 x 279 x 267 mm
  • Notes
  • BC (528-1600 kHz) and SW (5.75-18.3 MHz) bands. Tuning eye. Push-pull audio amplifier. Model 14WG-806A exists too - same time, same characteristics.

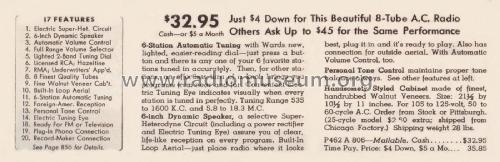

  • Price in first year of sale
  • 32.95 $
  • External source of data
  • Ernst Erb

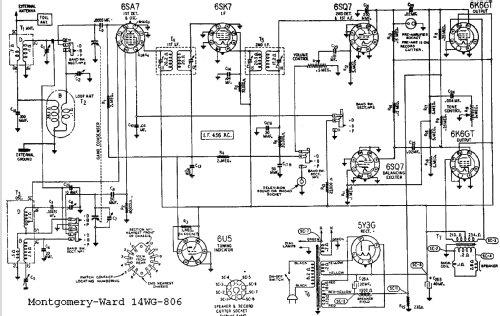

  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
