• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47693

• • Brand: Airline or Air-Line

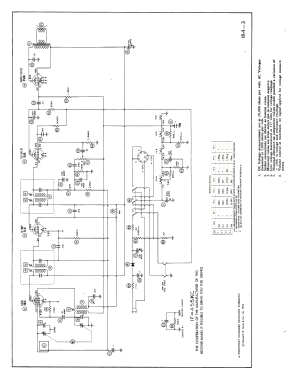

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1L4 or 1T4 1U5 3V4 or 3Q5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 117V =110-120/ 90 & 7.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Airline 15GHM-1070A - Montgomery Ward & Co. Wards,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Airline model 15GHM-1070A is a three power portable superheterodyne receiver.
  Selenium Rectifier



• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's Perpetual, Volume 23 (last))

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 11-52, Set 184, Folder 3)

• Other Models

• Here you find 2292 models, 1460 with images and 1788 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Montgomery Ward & Co. (Wards, Airline); Chicago, IL
