- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47729
-
- Brand: Airline or Air-Line

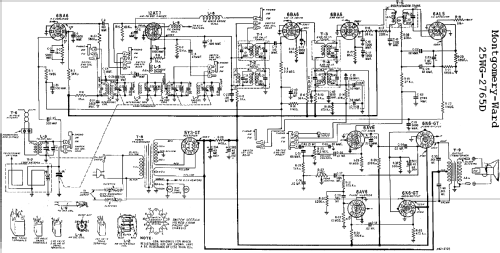

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 25WG-2765D - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Notes
- BC (540-1600 kHz) and FM (88-108 MHz) bands. Push-pull audio amplifier.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
