• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 277624

• • Brand: Airline or Air-Line

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: 567 Order= P462 C 567 Car Radio - Montgomery Ward & Co. Wards,

• Dimensions (WHD)
• 6 x 6 x 11 inch / 152 x 152 x 279 mm

• Price in first year of sale
• 14.95 $

• Literature/Schematics (2)

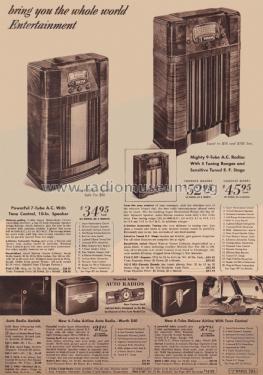

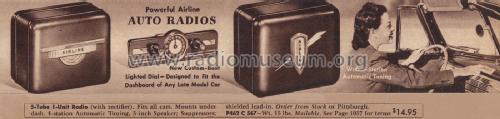

• Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1941, page 701. Fall/Winter 1941/42, No. 135, page 867.)

• Author
• Model page created by Noemi Erb. See "Data change" for further contributors.
