• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1934 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47805

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6D6 6D6 76 6D6 6D6 76 76 45 45 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

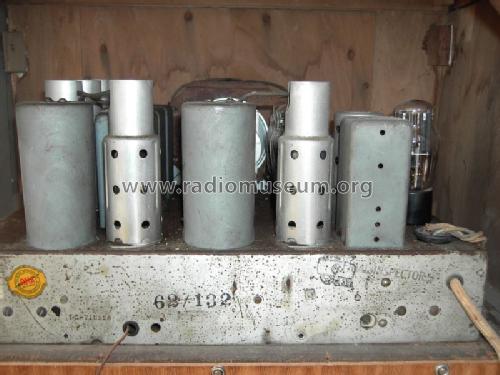

• Model: Airline 62-132 - Montgomery Ward & Co. Wards,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 21.5 x 38.5 x 12.5 inch / 546 x 978 x 318 mm

• Notes
• Has push-pull power output; phonograph connection. Broadcast Band: 530 to 1740kc - Shortwave Band: 5.8 to 18.3mc. A 115-220 volt 40-60 cycle power transformer was also available for this set.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Mentioned in
• Rider's 5-8, 5-9, 5-10
