• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47809

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 37 27 58 2A6 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 370 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

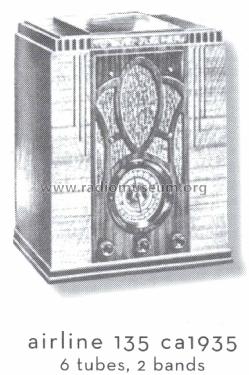

• Model: Airline 62-135 Order= 462 B 135 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13 x 15.25 x 9 inch / 330 x 387 x 229 mm

• Notes

• BC (530-1720 kHz) and SW (5.4-15.5 MHz) bands. 6 or 8 inch speaker.

• Price in first year of sale
• 25.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• Rider's 6-9, 6-10

• Literature/Schematics (1)
• Cathedral & Tombstone Radios (page 45.)

• Literature/Schematics (3)

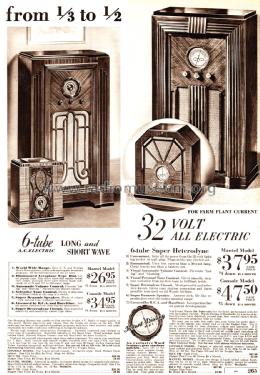

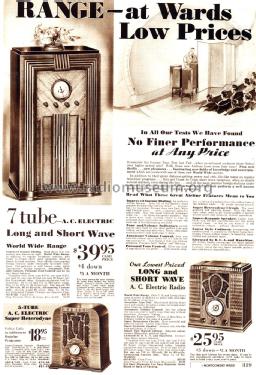

• Montgomery Ward Catalogs (Wards, Airline) (Fall and Winter 1934/35 page 319, Spring and Summer 1935 page 265)
