Airline 1611 Fantasy Order= 662 C 1611
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47847
-
- Brand: Airline or Air-Line

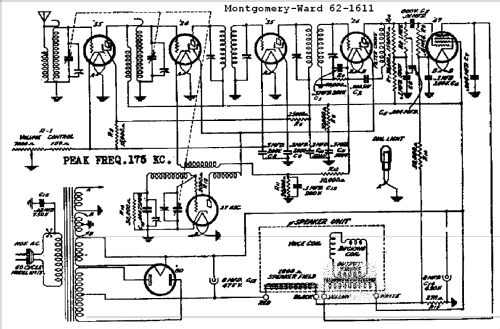

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 1611 Fantasy Order= 662 C 1611 - Montgomery Ward & Co. Wards,
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 17 x 10.75 x 18 inch / 432 x 273 x 457 mm
- Notes
-
Separate oscillator (27 tube).

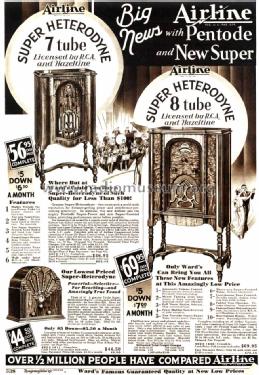

- Price in first year of sale
- 44.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- Rider's 2-12, 2-13
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 49.)
