62-211 Order= 662 A 211
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47898
-
- Brand: Airline or Air-Line

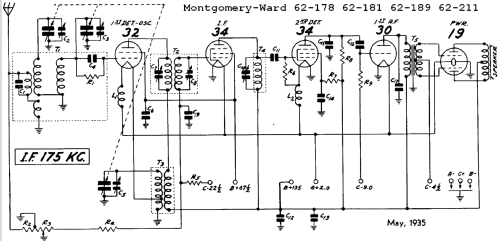

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / -22.5 & -9 & -4.5 & 2 & 67.5 & 135 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic. / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 62-211 Order= 662 A 211 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 18 x 16 x 10 inch / 457 x 406 x 254 mm
- Notes
-
Bandfilter input circuits. Push-pull audio amplifier. 6 or 8 inch speaker.
Model 211 is with storage "A" battery. Same model with dry "A" battery: Model 213.
- Price in first year of sale
- 27.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (Rider's 6-27, 6-28, 6-29)
- Literature/Schematics (1)
- Machine Age to Jet Age II (page 59.)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 47.)
- Literature/Schematics (3)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1935/1936, No. 123, page 421.)
