62-251 Order= 662 C 251
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47925
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / -4.5 & 2 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

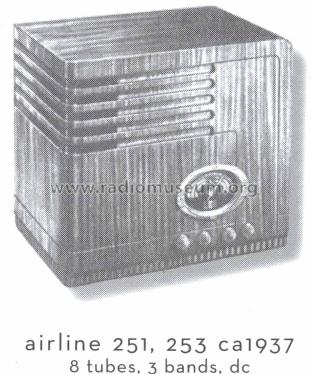

- Model: 62-251 Order= 662 C 251 - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17 x 15.5 x 12 inch / 432 x 394 x 305 mm
- Notes
-
BC (535-1720 kHz) band with bandfilter input circuits, TROP (1695-5500 kHz) and SW (5.2-18.3 MHz) bands. Push-pull audio amplifier. 6 inch speaker on mantel, 8 inch in console models.
Model 62-251 is with Storage "A" Battery. Same Model with Dry "A" Battery: Model Airline 253.
- Price in first year of sale
- 39.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Machine Age to Jet Age III (Rider's 9-3, 9-14)
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 47.)
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1936/37, No.125, page 389. Spring/Summer 1937, No.126, page 403.)
