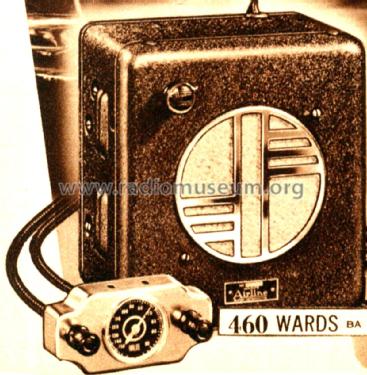

Airline 263 Order= P462 C 263

Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 47942
    • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6.3 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.25 inch = 13.3 cm
  • Power out
  • 2.4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Airline 263 Order= P462 C 263 - Montgomery Ward & Co. Wards,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 8.625 x 7.4375 x 6.1875 inch / 219 x 189 x 157 mm
  • Notes

  • BC (530-1581 kHz) band. Built-in vibrator for B+

  • Price in first year of sale
  • 23.35 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Mentioned in
  • Rider's 14-63, 14-64
