Airline 296 Order= P162 C 296
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47976
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 296 Order= P162 C 296 - Montgomery Ward & Co. Wards,
- Shape

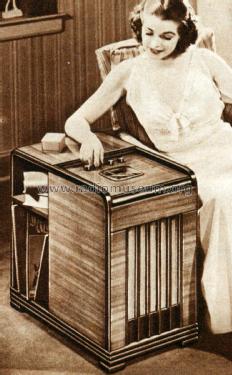

- Console: Chairside Radio.
- Dimensions (WHD)
- 23 x 15 x 24.25 inch / 584 x 381 x 616 mm
- Notes
-
BC (535-1720 kHz), TROP (1695-5500 kHz) and SW (5.2-18.1 MHz) bands. Two tuned input circuits for BC band.
- Price in first year of sale
- 39.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Rider's 14-89, 14-90
- Literature/Schematics (3)

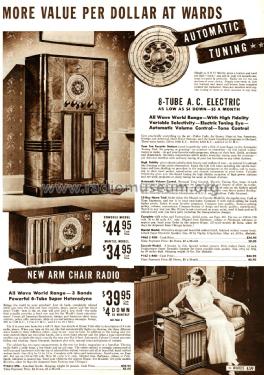

- Montgomery Ward Catalogs (Wards, Airline) (Spring & Summer 1938 page 459)
