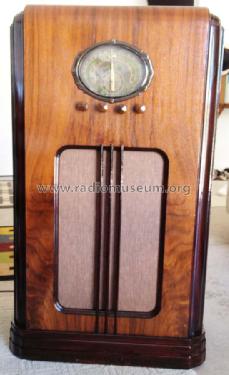

62-301 Ch= 1170
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1938 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47980
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 62-301 Ch= 1170 - Montgomery Ward & Co. Wards,
- Notes
-
BC (535-1720 kHz), TROP (1690-5300 kHz) and SW (5.2-18.1 MHz) bands. Tuning eye. Push-pull audio amplifier.
The Airline 62-301 uses the 11-tube chassis 1170 from Belmont Radio Corp. The only small difference between this radio and the various other 1170 versions, is that others shipped with the octal-base 5Z4 rectifier, while the Airline 62-301 shipped with the UX-based 5Z3.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Mentioned in
- Rider's 9-21, 9-22
