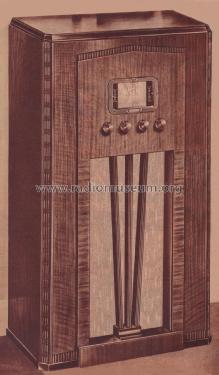

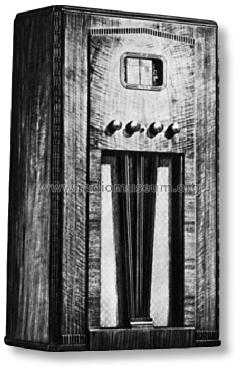

Airline 62-410 "Movie Dial" Order= 162 C 410
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1936–1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48070
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / -10.5 & 2 & 135 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 1.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 62-410 "Movie Dial" Order= 162 C 410 - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22.5 x 37.5 x 12 inch / 572 x 953 x 305 mm
- Notes
-
BC (528-1730 kHz), TROP (1710-5800 kHz) and SW (5.75-18.3 MHz) bands. Push-pull audio amplifier.
The model is made by Wells Gardner, showing here the "movie dial". There is a drum with 35mm film, imprinted with the dial scale and stations that arte then projected onto the front dial glass and move from one side to the other as the drum is turned. Each of the three bands show a different color. The tuner offers a fine and coarse adjustment with a tuning eye. There is also dial indicated tone and volume controls.
See also some other models with the "movie dial" like the console Airline 62-308, Airline 62-310, 62-311, 62-313, 62-327, etc.
Model Airline 62-410 "Movie Dial" is with Storage 2-Volt "A" Battery. Same Model with Dry "A" Battery: Airline 62-412 "Movie Dial".
- Price in first year of sale
- 70.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Rider's 8-22, 8-23, 8-24, 8-25, movie dial: 8-1 to 8-4
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (3)

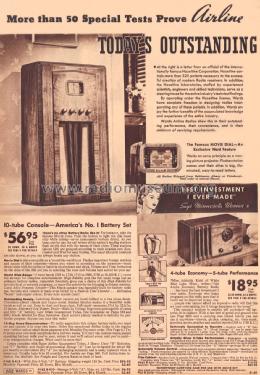

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1937/38, No.127, page 652.)
- Literature/Schematics (4)

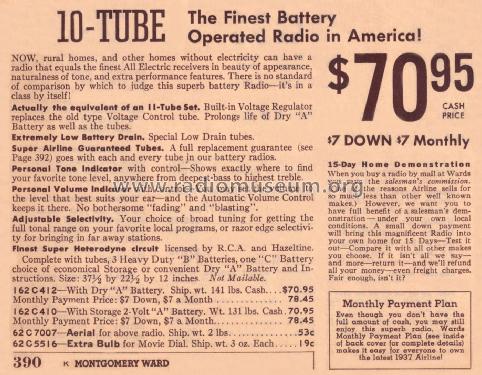

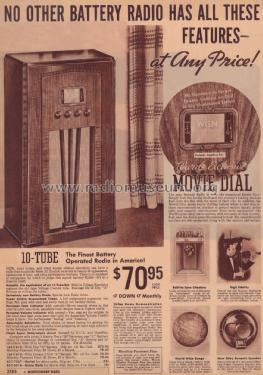

- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1936/37, No.125, page 386. Spring/Summer 1937, No.126, page 404.)
