Airline 62-51 Order= 662 X 51
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48142
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airline 62-51 Order= 662 X 51 - Montgomery Ward & Co. Wards,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 25.25 x 44 x 13.5 inch / 641 x 1118 x 343 mm
- Notes
-
It is nearly unbelievable, but Rider's shows this schematic of a 1932/33 model in volume 15 from 1947 as Montgomery Ward in 14-43 - and in 15-44 the drawing of the chassis etc. The manufacturer is most probably Gulbransen (else Wells-Gardner). Also Lafayette and Radiolek sold models with this chassis. At least Montgomery Ward models 62-51, 62-64 and 62-64X use the same schematic and chassis.
- Price in first year of sale
- 72.50 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Pre-War Consoles
- Literature/Schematics (3)

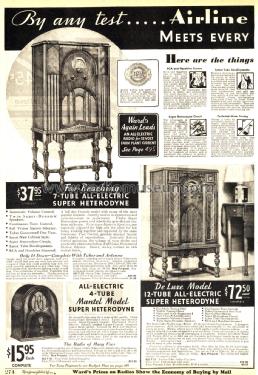

- Montgomery Ward Catalogs (Wards, Airline) (Fall and Winter 1932/33 page 143, Spring and Summer 1933 page 274)
