- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 74472
-
- Brand: Airline or Air-Line
Beitman
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.75 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 64WG-2009B - Montgomery Ward & Co. Wards,
- Shape
- Tablemodel, with any shape - general.
- Notes
- 4" x 6" PM elliptical speaker.
Photofact see under Trade name: Airline.
- Mentioned in
- Beitman Radio Diagrams, Vol. 07, 1947
- Literature/Schematics (1)

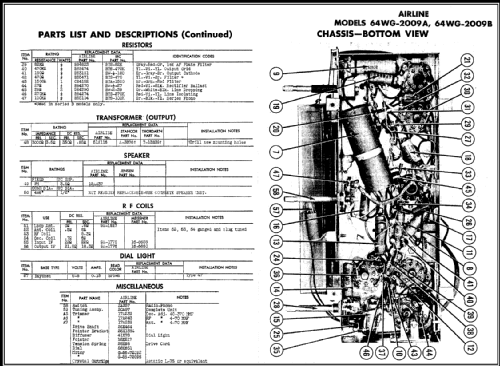

- Photofact Folder, Howard W. SAMS (Set 6, Folder 466-2)
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
