• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 48479

• • Brand: Airline or Air-Line

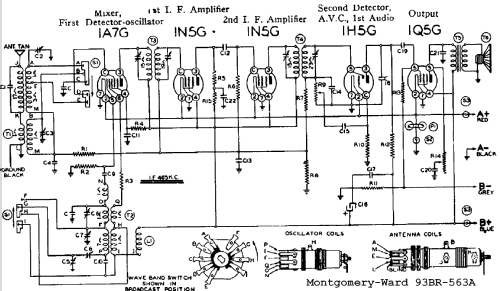

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

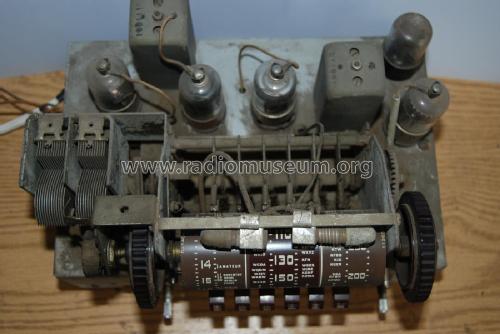

• Valves / Tubes
• 1A7G 1N5G 1N5G 1H5G 1Q5G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 1.5 Volt

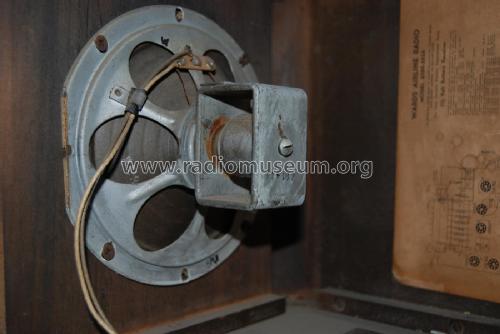

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 0.19 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 93BR-563A Order= P362 C 2563 - Montgomery Ward & Co. Wards,

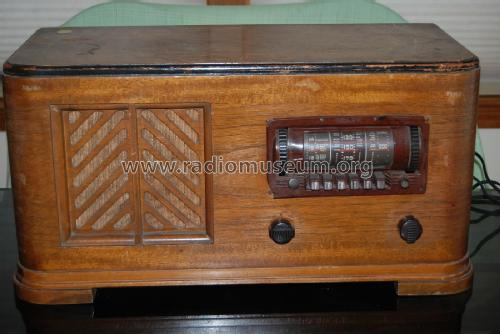

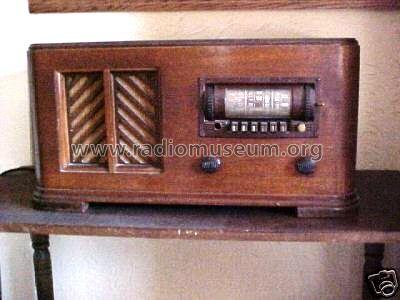

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 22.5 x 11.5 x 11 inch / 572 x 292 x 279 mm

• Notes

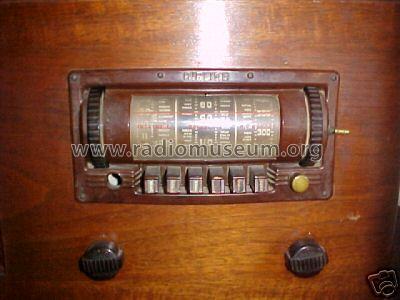

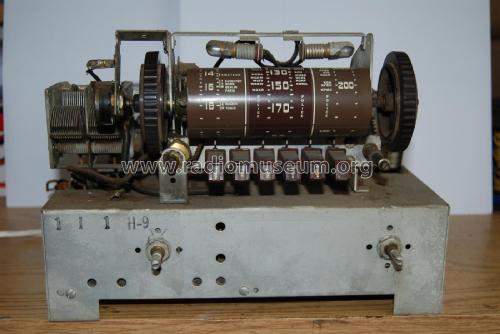

• 6 station pushbuttons.

  Model 93BR-563A is with dry "A" battery. Same Model with storage "A" battery: Model 1563.

• Price in first year of sale
• 25.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (Rider's 11-29)

• Literature/Schematics (4)

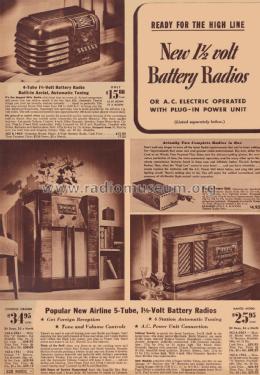

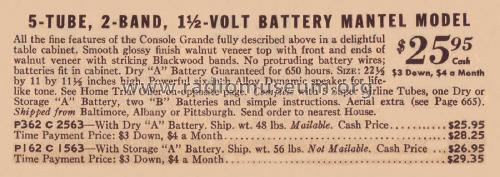

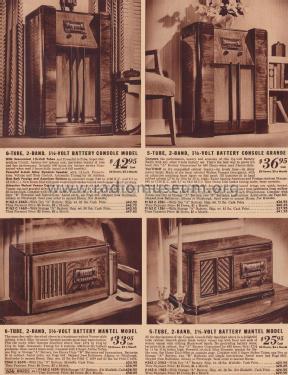

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1939/40, No. 131, page 656. Spring/Summer 1940, No.132, page 538.)
