• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 48508

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6D6 6C6 76 6D6 6U5 76 76 76 41 41 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 93WG-1104 Order= 162 A 1104 - Montgomery Ward & Co. Wards,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27.75 x 41.5 x 13.25 inch / 705 x 1054 x 337 mm

• Notes

• BC (528-1600 kHz) band. TROP (1585-5400 kHz) and SW (5.35-18.3 MHz) bands. Tuning eye. Push-pull audio amplifier.

• Price in first year of sale
• 49.95 $

• External source of data
• Ernst Erb

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Rider's 11-40, 11-53

• Literature/Schematics (4)

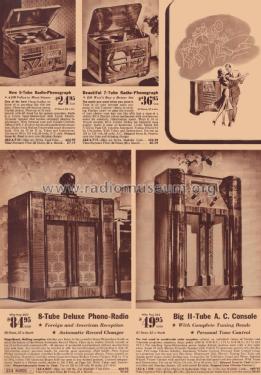

• Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1940, No.132, page 534.)
