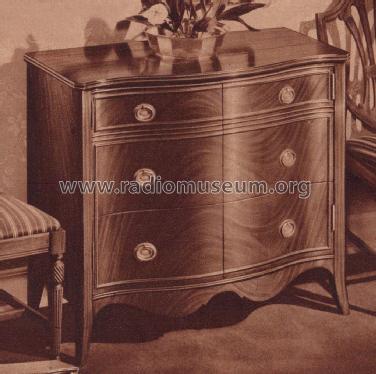

93WG-1110 Order= 262 B 1110
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48509
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 93WG-1110 Order= 262 B 1110 - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 32.5 x 33.25 x 16 inch / 826 x 845 x 406 mm
- Price in first year of sale
- 69.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Rider's 14-126, 14-149, -150, -151
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1939, No.130, page 566.)
