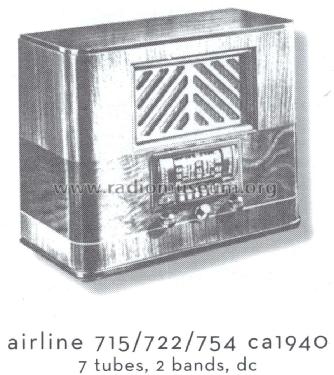

93WG-754 Order= P462 C 754
Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Montgomery Ward & Co. (Wards, Airline); Chicago, IL
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 48527
-
- Brand: Airline or Air-Line
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.17 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 93WG-754 Order= P462 C 754 - Montgomery Ward & Co. Wards,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 14.25 x 16.25 x 9 inch / 362 x 413 x 229 mm
- Notes
- Farm radio. BC (528-1730 kHz) band with 6 station buttons and SW (5.75-18.3 MHz) band. Push-pull audio amplifier. 6 or 8 inch speaker.
- Price in first year of sale
- 29.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Rider's 11--40, 11-42, 11-45
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 48.)
- Literature/Schematics (2)
- Table Top Radios Vol. 4 Stein 2003 (page 45.)
- Literature/Schematics (3)
- Montgomery Ward Catalogs (Wards, Airline) (Spring/Summer 1941, page 706.)
- Literature/Schematics (4)
- Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1939/40, No. 131, page 660. Fall/Winter 1940/41, No. 133, page 706.)
