• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 48531

• • Brand: Airline or Air-Line

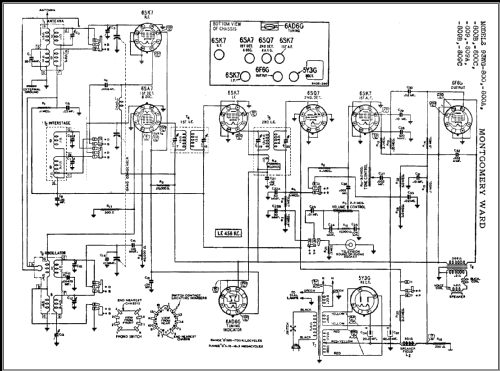

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6AD6G 6SK7 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 93WG-800B Order= P462 C 800 - Montgomery Ward & Co. Wards,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 22 x 12.5 x 10.375 inch / 559 x 318 x 264 mm

• Notes
• See also Rider's Perpetual, Volume 11.

• Price in first year of sale
• 34.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (4)

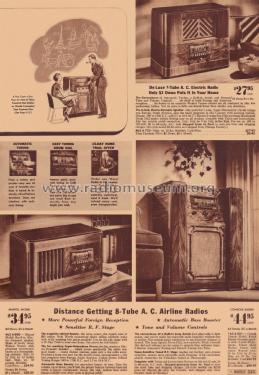

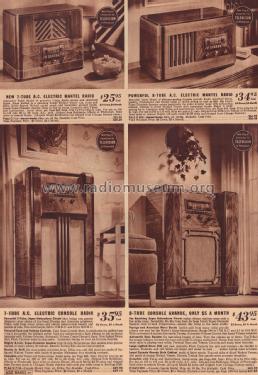

• Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1939/40, No. 131, page 652. Spring/Summer 1940, No.132, page 533.)
