• Country
• United States of America (USA)

• Manufacturer / Brand
• Montgomery Ward & Co. (Wards, Airline); Chicago, IL

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 354925

• • Brand: Airline or Air-Line

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BK7 or 6AG5 or 6BC5 or 6CB6 or 6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 12AT7 12AU7 6AU6 6AU6 6AU6 6AL5 6AV6 6AQ5 6SN7GT 6S4 6AL5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 21AP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Airline 15WG-3049B - Montgomery Ward & Co. Wards,

• Shape
• Console with any shape - in general

• Notes

• Airline model 15WG-3049B is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 21AP4.



• Literature/Schematics (1)

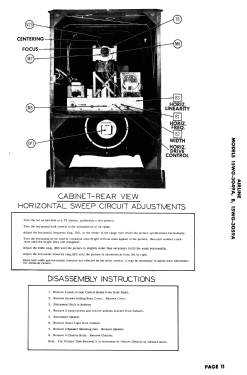

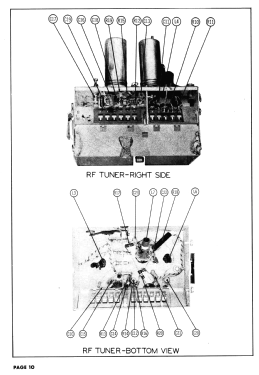

• Photofact Folder, Howard W. SAMS (Set 164, folder 2, dated 4-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
